31-color patch kit for hp2xx-3.4.4 and executables for MS-DOS

Overview

This patch kit for hp2xx-3.4.4 is primarily designed to convert HPGL-format plot files created during the MS-DOS 3.1 era into 31-color EPS files. We have selected a set of colors that we believe look beautiful and are well-suited for printing on paper or saving as PDFs.

HP2XX Files

hp2xx-3.4.4.tar.gz - local copy of the hp2xx-3.4.4.tar.gz
hp2xx-3.4.4-patchkit-lyuka32.tar.gz - 31-color patch kit for hp2xx-3.4.4
hp2xx-3.4.4-dos-lyuka32.zip - HP2XX.EXE : executable file for MS-DOS extended to support 31 colors

github.com/myopensourceprojects/hp2xx-3.4.4 - A HPGL to G-Code conversion Tool

Examples

The input.hpg is converted to EPS and output to output.eps.
The default colors cyan and orange in pens 5 and 9 have been replaced by cerulean blue and vermillion respectively.

hp2xx -c1234l678nabcdef -m eps input.hpg -f output.eps

Fit picture into center of ISO A4 (i.e. 210×297 mm) rectangle.
Leave pens 13 and 14 at their default pensize 1 and change the other pensizes to 2.

hp2xx -p222222222222112 -h 210.0 -w 297.0 -m eps -C input.hpg -f output.eps

Color plot example

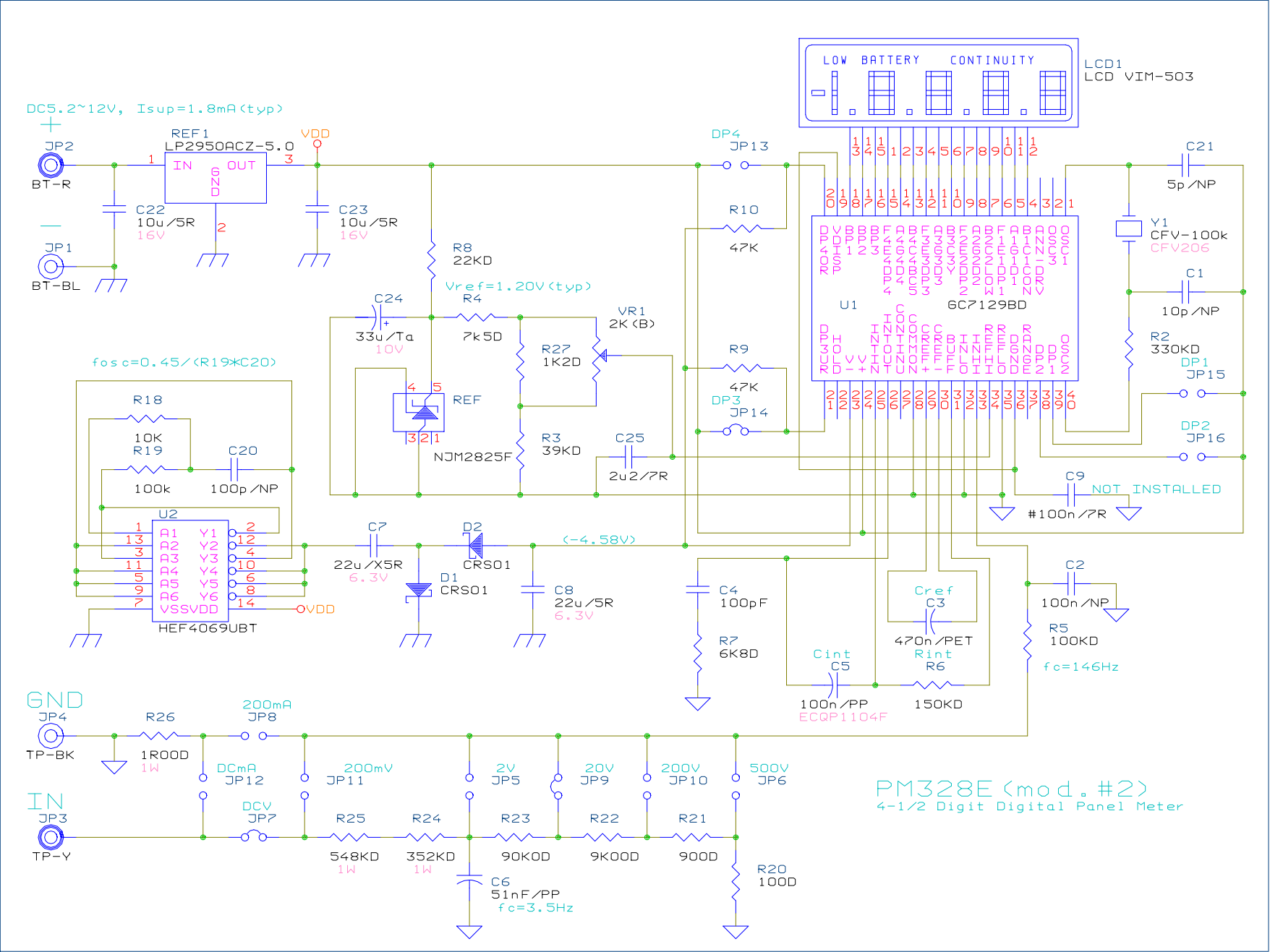

Color plot of an old schematic — Schematics: 4-1/2 digits Digital Panel Meter

Color chart

No.	Name	Hex	R	G	B
1	Black	#000000	0	0	0
2	Red	#FF0000	255	0	0
3	Grass Green	#5BBF00	91	191	0
4	Blue	#0000FF	0	0	255
5	Cyan	#00BFBF	0	191	191
6	Fuchsia	#FF00FF	255	0	255
7	Olive Green	#7F7F00	127	127	0
8	Violet	#BF00FF	191	0	255
9	Orange	#FF7F00	255	127	0
a	Azure	#007FFF	0	127	255
b	Rose Madder Lake	#FF007F	255	0	127
c	Sunflower	#FFBF00	255	191	0
d	Prussian Blue	#003F7F	0	63	127
e	Burnt Sienna	#B25532	178	85	50
f	Tea Rose	#FF88C5	255	136	204
g	Hyacinth	#7F00FF	127	0	255
h	Crimson Lake	#880024	136	0	36
i	Permanent Green	#216600	33	102	0
j	Deep Cobalt Green	#005361	0	83	97
k	Sepia	#6F4E27	111	78	39
l	Cerulean Blue	#00A2D9	0	162	217
m	Cobalt Blue	#6166FF	97	102	255
n	Vermilion	#FF3000	255	48	0
o	Ocher	#CC7722	204	114	34
p	Burnt Umber	#8A3324	138	51	36
q	Jazzberry Jam	#BF0069	191	0	105
r	Lavender Rose	#EE99FF	238	153	255
s	Coral Pink	#F88379	255	175	207
t	Lemon	#FDE910	253	233	16
u	Pear	#D1E231	209	226	49
v	Gray	#AAAAAA	170	170	170

Note : Color names and color codes are defined independently and do not follow any particular standard.
