刃物の切れ味の分類・刃先先端半径と切断の挙動

概要

刃物の「切れ味（Sharpness）」は、単なる官能的な指標ではなく、刃先先端半径（Apex Radius: R_apex）と、被切断物の微細構造との相互作用によって定まる物理現象です。本稿では切れ味を、マクロな破壊から原子レベルの分断に至るまでの物理的背景をもとに、11のクラスに分類し、それぞれのレベルに対応する代表的なベンチマークを提示します。

本分類は、刃先形状および切断挙動の観察に基づき整理したものであり、分子レベルでの切断機構については既知の物理モデルに基づく解釈を含みます。

特に、R_apex 50 nm付近には、切断メカニズムが「組織の粘弾性的な逃げ」から「分子結合の直接的な断裁」へと移行する臨界的な領域が存在します。この境界を越える「Matrix Edge」の領域では、鋼材中の巨大な炭化物は研磨の障害となり、マトリクス（母材）そのものの平滑性と界面の安定性が支配的な因子となります。

本分類の目的は、エンジニアリングの視点から刃先の幾何学的精度を再定義し、材料工学および光学的な検証に基づくシャープニングの到達領域を、観察的な事象と関連付けて示すことです。

刃先先端半径と切断の挙動に基づく刃物の切れ味の分類

Sharpness Classification of Cutting Edges Based on Apex Radius and Cutting Behavior
Class	Classification	Description	Apex Radius (`R`_apex) [nm]	Benchmark / Visual Reference
10	Damaged	Severe edge degradation	> 1000	Visible nicks or chips
9	Dull	Utility/Axe grade	500 - 1000	Apex reflects light
8	Working Edge	General-purpose stationery tools	300 - 500	Slices newsprint or copy paper
7	Sharp	High-quality kitchen knives (well maintained)	200 - 300	Cuts tissue paper without snagging No light reflection from apex
6	Very Sharp	Professional chef's knives	120 - 200	Cuts tissue paper with reduced lint Minor fiber disturbance
5	Ultra Sharp	Fine woodworking plane	80 - 120	Clean cut, minimal lint Continuous fiber severing Translucent softwood shavings
4	Extremely Sharp	High-grade blade steel Matrix-dominated edge with minimal carbide interference Upper bound often limited by micro-carbide discontinuities	50 - 80	Cuts hair by catching cuticle (hair whittling)
3	Matrix Edge (I)	Ultra-fine Razor Primary matrix planarization Requires near-continuous matrix with negligible carbide effects	30 - 50	True Floating Cut: Transverse severing (ignore cuticle)
2	Matrix Edge (II)	Microsurgery Scalpels Interfacial boundary stabilization	20 - 30	Cut nerves and vessels precisely
1	Molecular Edge	Glass microtome Precise to handle cells	5 - 20	Cuts sections as thin down to ~200 nm
0	Atomic Edge	Diamond microtome ~12-atom edge thickness	< 3	Cuts sections as thin as 50 nm

Definitions

Matrix Edge: An edge whose sharpness is governed primarily by the continuous matrix rather than discrete carbide features.

Notes

Edge radius values represent effective radius under practical use conditions, including wear and surface state.
"Atomic-scale" specifications are often expressed in atom counts; these correspond to a few-nanometer effective edge radius rather than a strictly defined geometric curvature.

Class 4+ Example (End-Grain Cutting)

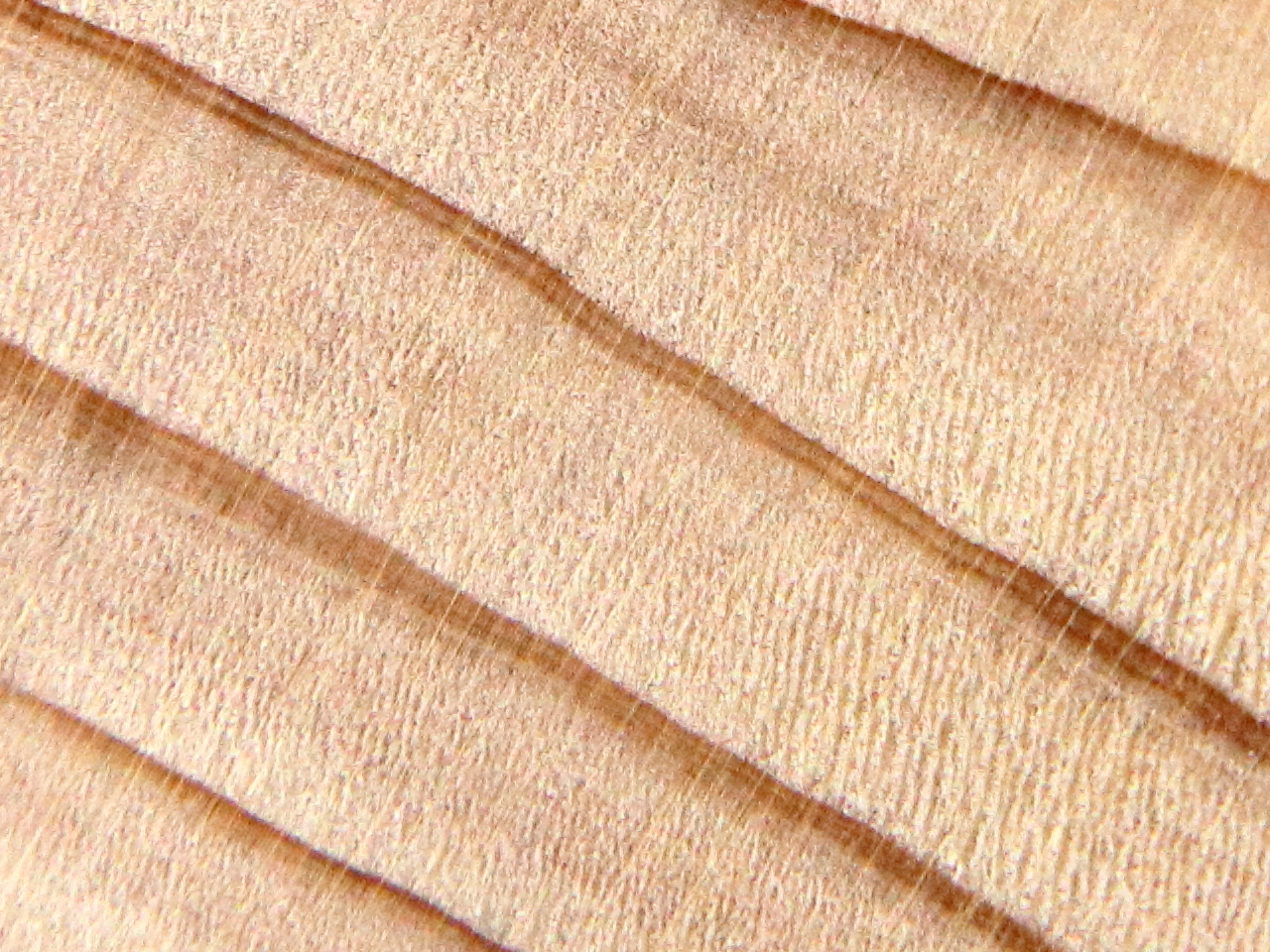

Hinoki (cypress) end-grain cross-section: Cellular structure remains largely intact, including dense latewood regions, indicating a shear-dominated, matrix-controlled cut with minimal crushing. (Class 4+, approaching Class 3)

Cutting direction is set at approximately 45° to the growth rings to distinguish material structure from potential tool marks.
The fine linear textures are intrinsic to the wood microstructure and not machining artifacts.
Finished using a Blue Paper Steel #2 blade; minor surface scattering may reflect fine carbide effects.

Class 3 Demonstration (True Matrix Edge)

True Floating Cut: transverse severing without cuticle anchoring

Demonstrated on coarse, straight human hair using a carbon steel blade (G. Sakai AR301SS). The cut is achieved without relying on cuticle engagement, indicating a matrix-dominated edge beyond carbide-limited behavior.

Reference Examples

Obsidian scalpel: molecular edge (< 5 nm)
Glass ultramicrotome: ~3?4 nm local apex, ~100 nm sectioning capability
