Murata's 10K\Omega; NTC thermistor Temperature-Resistance conversion rev.1.0 for HP 42s

for HP 42S
NTC-10K - Murata's NTC thermistor Resistance V.S. Termperature functions

Usage

Resistance → Temperature conversion : [SOLVER] [XV10K|XH10K] Resistance [R] [Temp]
Temperature → Resistance conversion : [SOLVER] [XV10K|XH10K] Temperature [Temp] [R]

Variables

MEM "R"    : resistance [&Omega];
MEM "T_c" : temperature [°C]

Approximate equation:

$R_T = R_{25} \exp\big\{ B \big( \displaystyle\frac{1}{ 298.15 + (T - T_{25}) + C (T - T_{25})^2 + D (T - T_{25})^3} - \frac{1}{273.15 + T_{25}}\big)\big\}$

R_T : Resistance [Ω] at temperature T [°C]
R₂₅ : Resistance [Ω] at 25 °C
T₂₅ : Temperature 25 °C
T : Temperature in °C



Part number
B
C
D



NTSA0XV103
 3878.1
 2.797  ×10^-4
 2.80 ×10^-7



NCP21XV103
 3866.5
 3.732  ×10^-4
-6.50 ×10^-7



NCP15XH103
 3327.4
 5.963  ×10^-4
 6.59 ×10^-7

Approximation errors

fig.1 Approximation error V.S. Temperature, Resistance V.S. Temperature (NTSA0XV103)

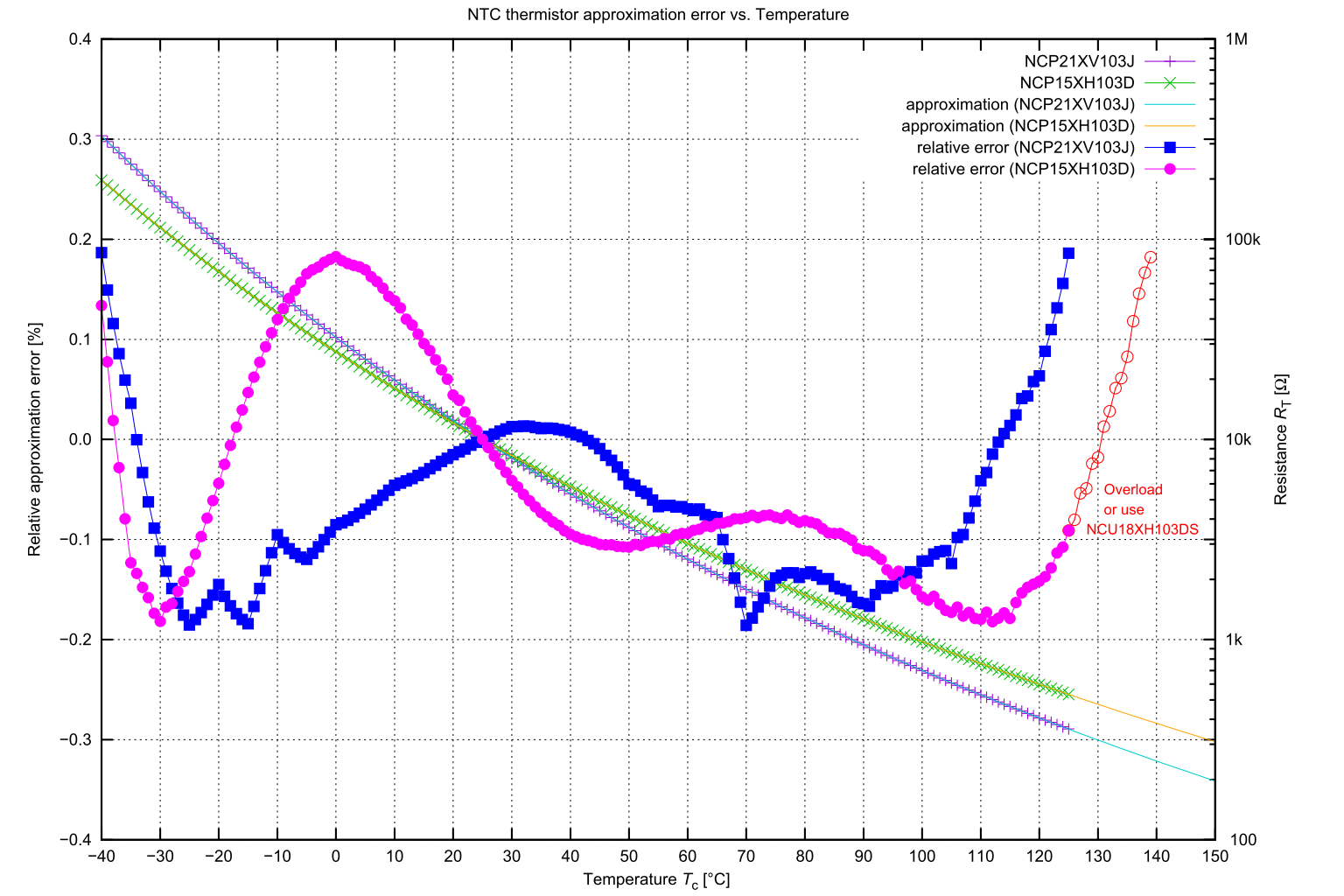

fig.2 Approximation error V.S. Temperature, Resistance V.S. Temperature (NCP15XH103, NCP21XV103)

Program list (Rev.1.10 Mar. 3, 2010)

NTC thermistor approximate function for NTSA0XV103, NCP21XV103 and NCP15XH103

NTSA0XV103 NCP21XV103 NCP15XH103

01 LBL "A0XV"
02 MVAR "T_c"
03 MVAR "R"
04 RCL "T_c"
05 25
06 -
07 ENTER
08 ENTER
09 ENTER
10 2.8E-7
11 ×
12 2.797E-4
13 +
14 ×
15 1
16 +
17 ×
18 298.15
19 +
20 1/χ
21 298.15
22 1/χ
23 -
24 3878.1
25 ×
26 E↑χ
27 1E4
28 ×
29 RCL- "R"
30 .END.

01 LBL "P1XV"
02 MVAR "T_c"
03 MVAR "R"
04 RCL "T_c"
05 25
06 -
07 ENTER
08 ENTER
09 ENTER
10 -6.50E-7
11 ×
12 3.7322E-4
13 +
14 ×
15 1
16 +
17 ×
18 298.15
19 +
20 1/χ
21 298.15
22 1/χ
23 -
24 3866.5
25 ×
26 E↑χ
27 1E4
28 ×
29 RCL- "R"
30 .END.

01 LBL "P5XH"
02 MVAR "T_c"
03 MVAR "R"
04 RCL "T_c"
05 25
06 -
07 ENTER
08 ENTER
09 ENTER
10 6.59E-7
11 ×
12 5.963E-4
13 +
14 ×
15 1
16 +
17 ×
18 298.15
19 +
20 1/χ
21 298.15
22 1/χ
23 -
24 3327.4
25 ×
26 E↑χ
27 1E4
28 ×
29 RCL- "R"
30 .END.

Download 'A0XV' / 'P1XV' / 'P5XH' - raw program files for the Free42
